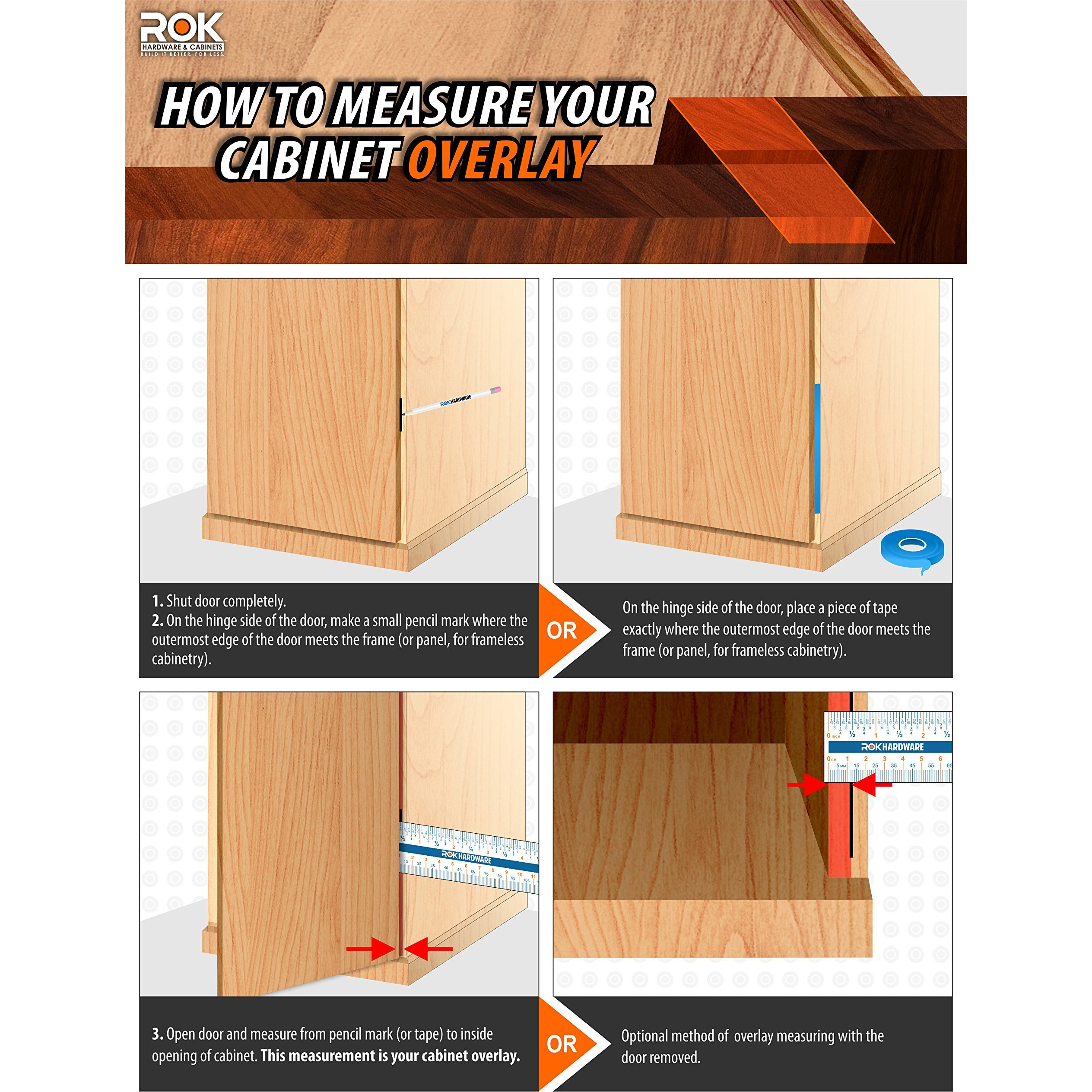

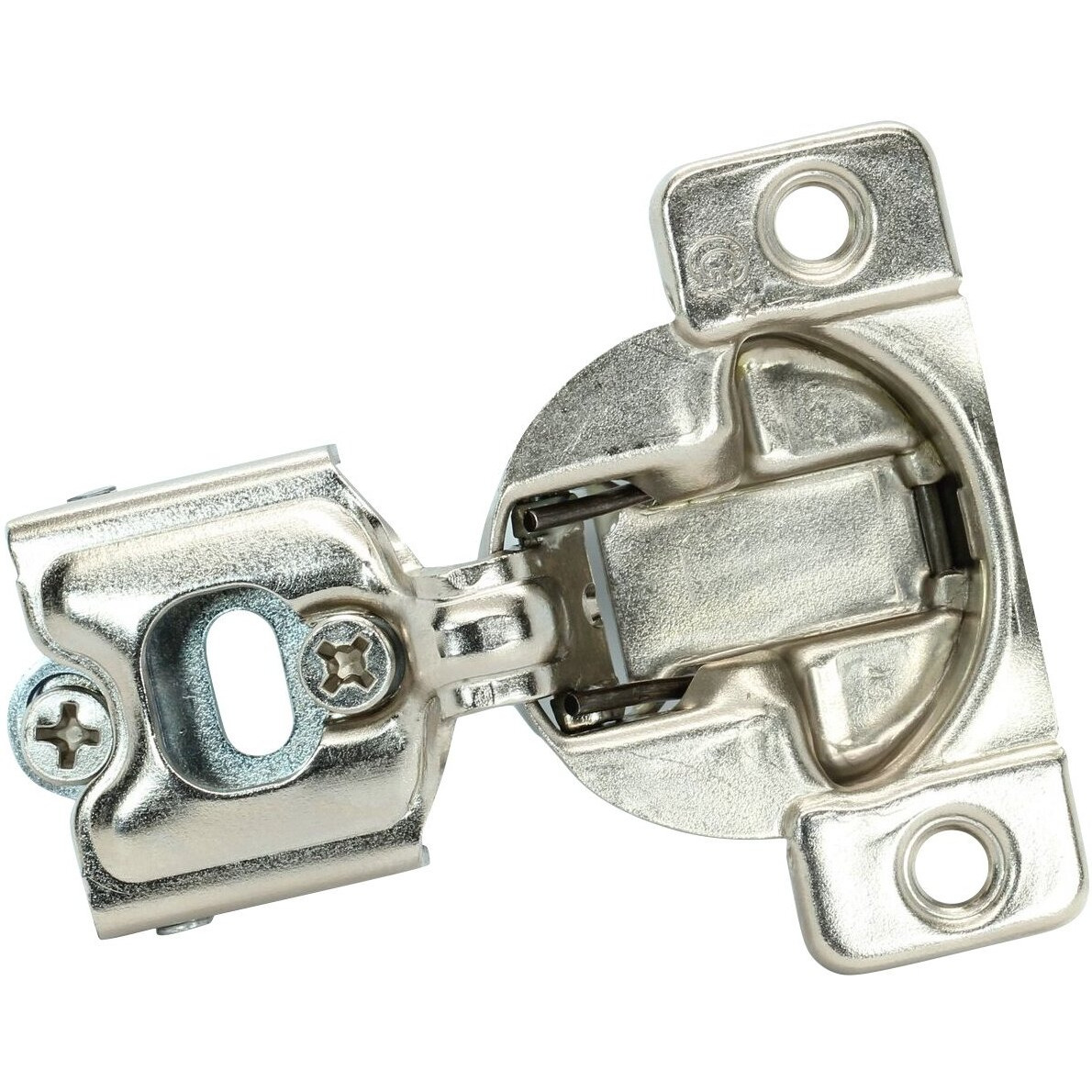

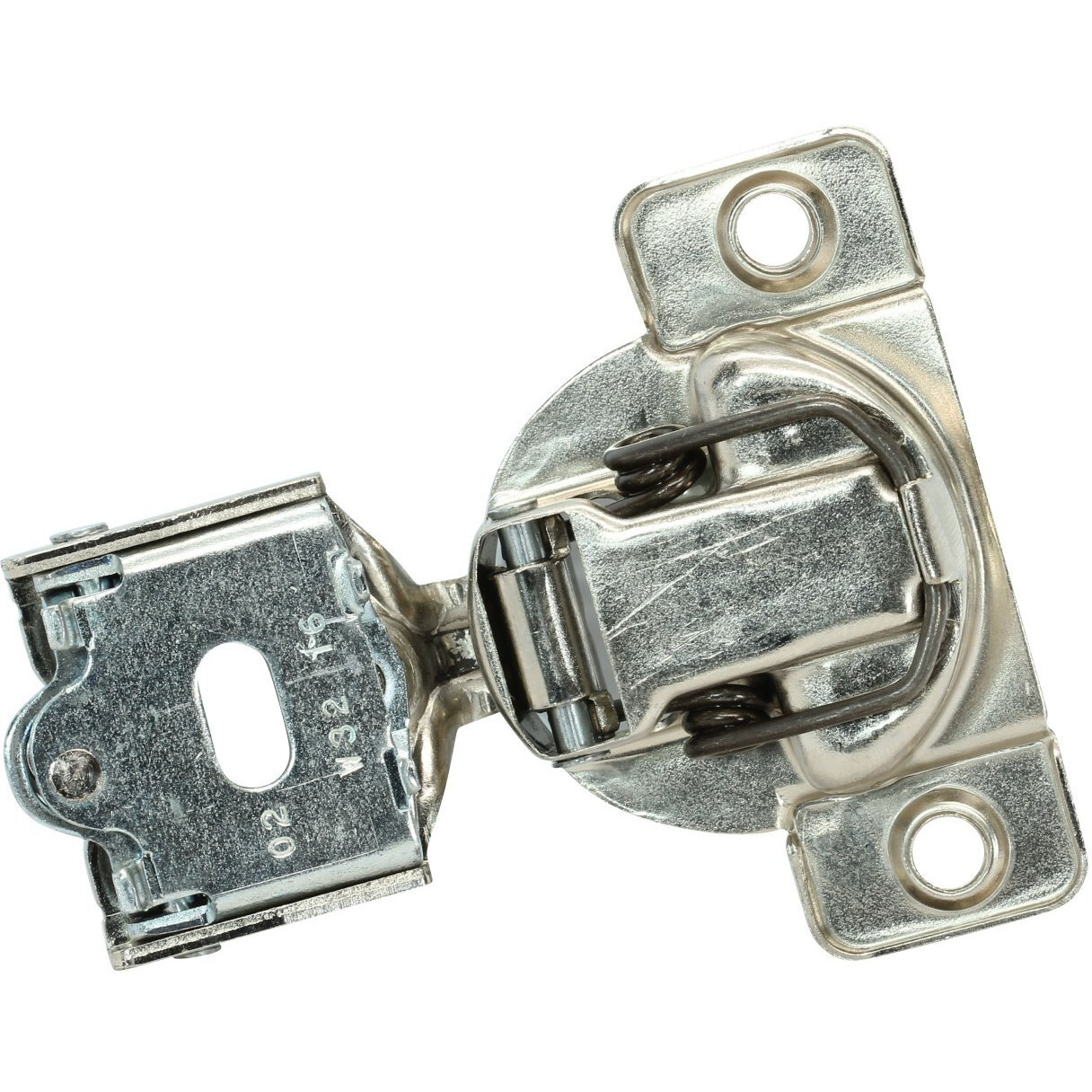

Grass Tec 864 Self Close Cabinet Hinge ""Door Will Slam Shut"" Note: Self Close Means When You Close The Door And It Gets Within 2"" Of Closing It Will Pull Itself Close Because Of The Spring In The Hinge Itself. It Is Different From Soft Close Wherein The Door Gets About 2"" Away From Closing And Then Slows Itself To Softly Close. Made In The Usa One Piece Hinge And Base Plate Combination Overlay: 1/4"" (6.35Mm) Installation: Screw On Cabinet Door Closing Type: Self Close (Door Will Slam Shut) 3 Dimensional Adjustment 11Mm (7/16"") Cup Drilling Depth Hinge Cup Boring Diameter: 35Mm Hinge Cup Boring Distance:2.5Mm(3/32"") Drilling Hinge Screw Hole Pattern: 42Mm Hinge Door Opening Angle: 108 Degrees Front Locating Tabs Position Hinge On Face Frame Cam Side Adjustment: +/- 1.5Mm(1/16"") Cam Depth Adjustment: +2.5Mm(7/64"") -0.5Mm(1/32"") Height Adjustment At Mounting Screw: +/-2Mm(3/32"") Mounting Type: Wrap Mount Mounting Screws: Includes 2X #6 X 5/8"" Wood Screws And 1X #10 X 3/4"" Wood Screw
