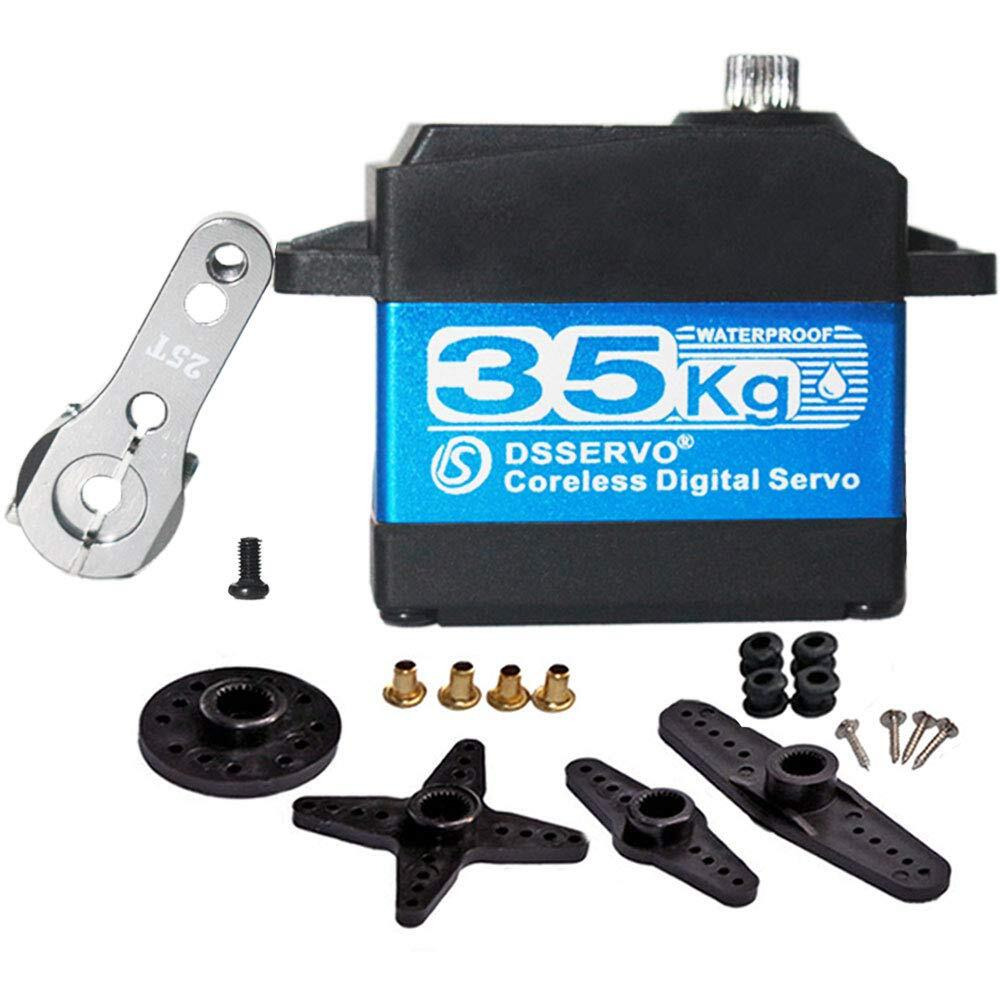

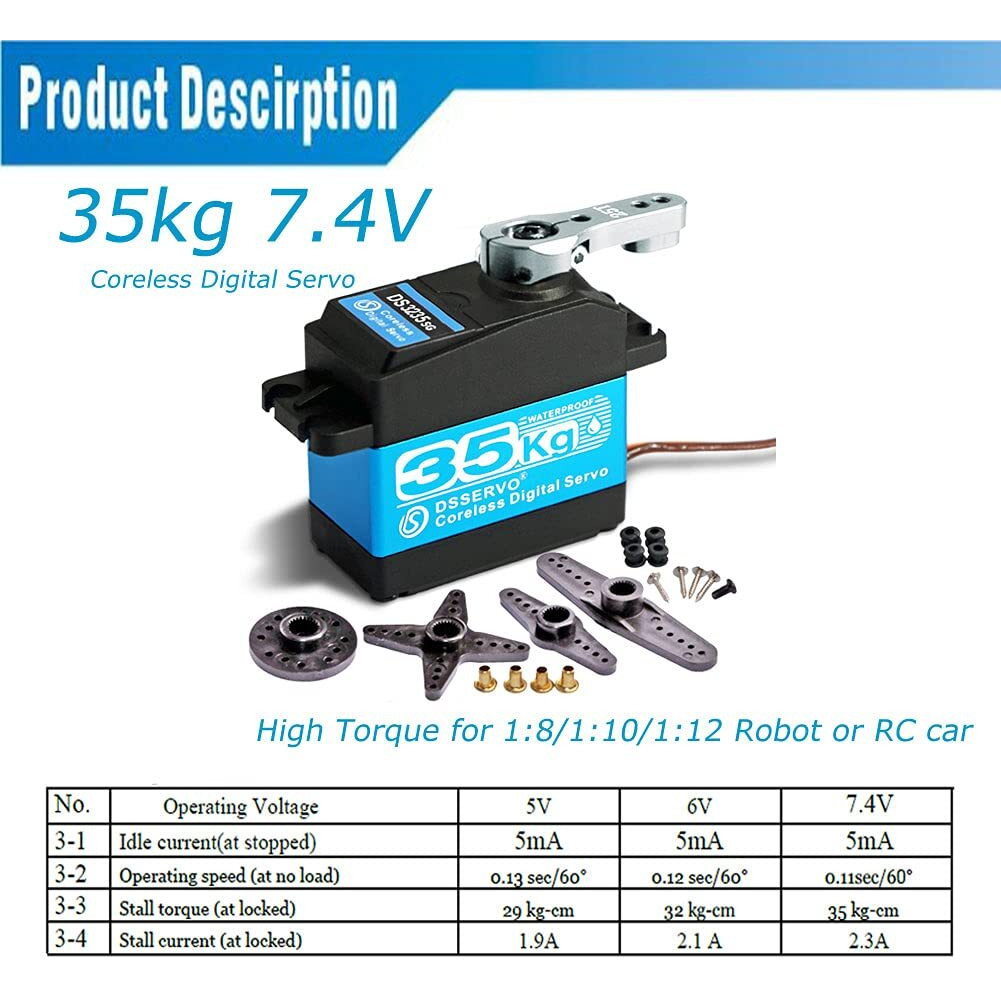

Electrical Specification: Operating Voltage Range: 5-8.4 Volts Operating Speed At No Load ( 5V ): 0.18 Sec/60 Operating Speed At No Load ( 7.4V ): 0.13 Sec/60 Operating Speed At No Load ( 8.4V ): 0.11 Sec/60 Stall Torque At Locked ( 5V ): 23Kg.Cm(319.4Oz-In) Stall Torque At Locked ( 7.4V ): 30Kg.Cm(416.6Oz-In) Stall Torque At Locked ( 8.4V ): 35Kg.Cm(486Oz-In) Stall Current At Locked ( 5V ): 2.2A Stall Current At Locked ( 7.4V ): 2.9A Stall Current At Locked ( 8.4V ): 3.2A Idle Current At Stopped (5/7.4/8.4V): 5Ma Control Specification: Control System: Pwm (Pulse Width Modification) Pulse Width Range: 500-2500Sec Neutral Position: 1500Sec Running Degree: 180 (When 500-2500Sec) Dead Band Width: 2Sec Operating Frequency: 50-330Hz Rotating Direction: Counterclockwise (When 1500-2500Sec) Product Specification: Suitable For: For 1/8 1/10 1/12 Scale Rc Cars Trucks Motor Type: Coreless Motor Gear Type: Stainless Steel Spline:25T Gear Ratio: 342 Bearing:Double Bearing Waterproof Performance:Ip67 Connector Wire: 17.7In (450Mm) Size: 1.57*0.79*1.59Inch(40 * 20 * 38.5Mm) Weight: 2.11Oz (60G) Ce /Rohs: Yes Packing List: 1*Ds3235Sg 35Kg Servo 1*25T Adjustable Metal Servo Arm One Set Of Plastic Accessories (As Shown On The Picture)
