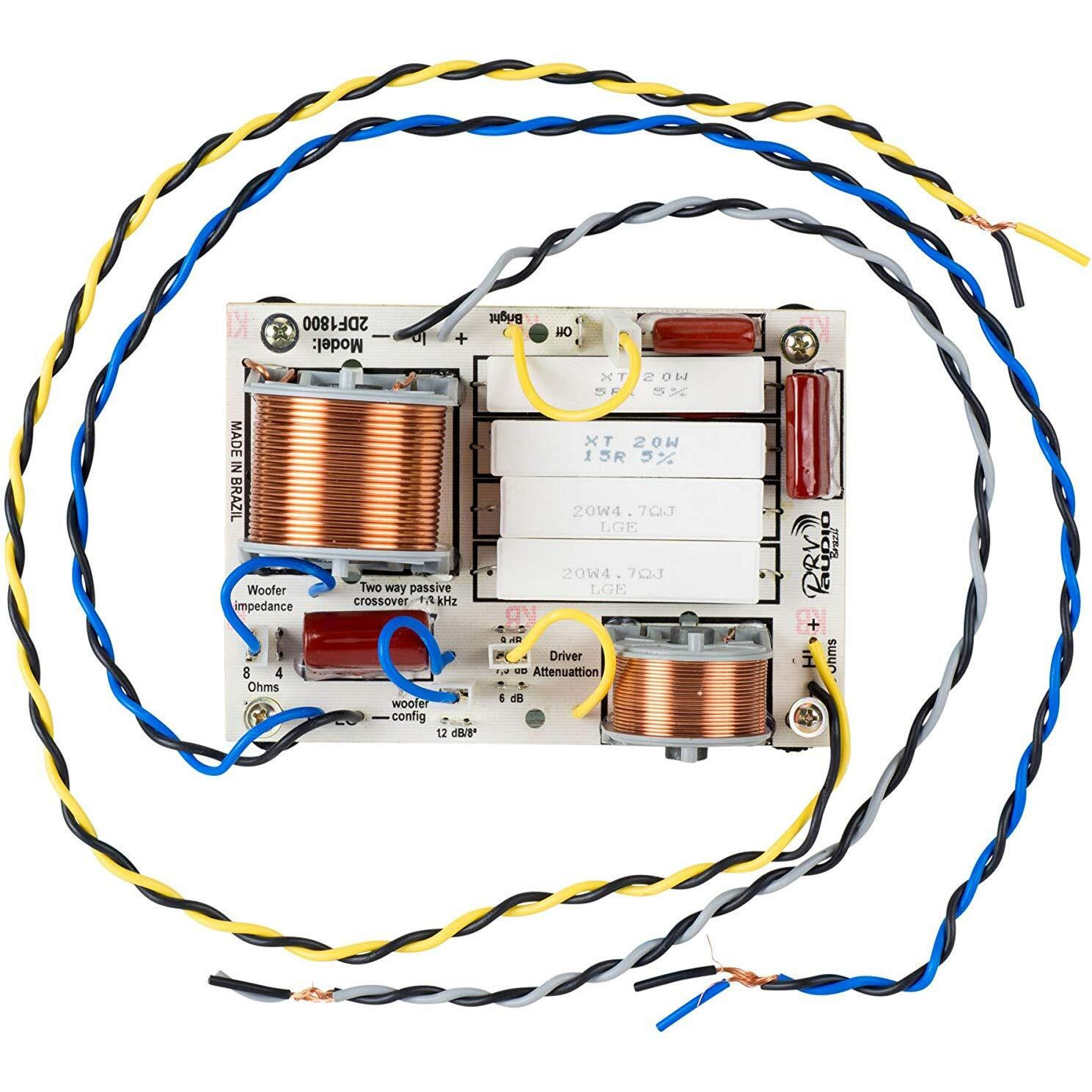

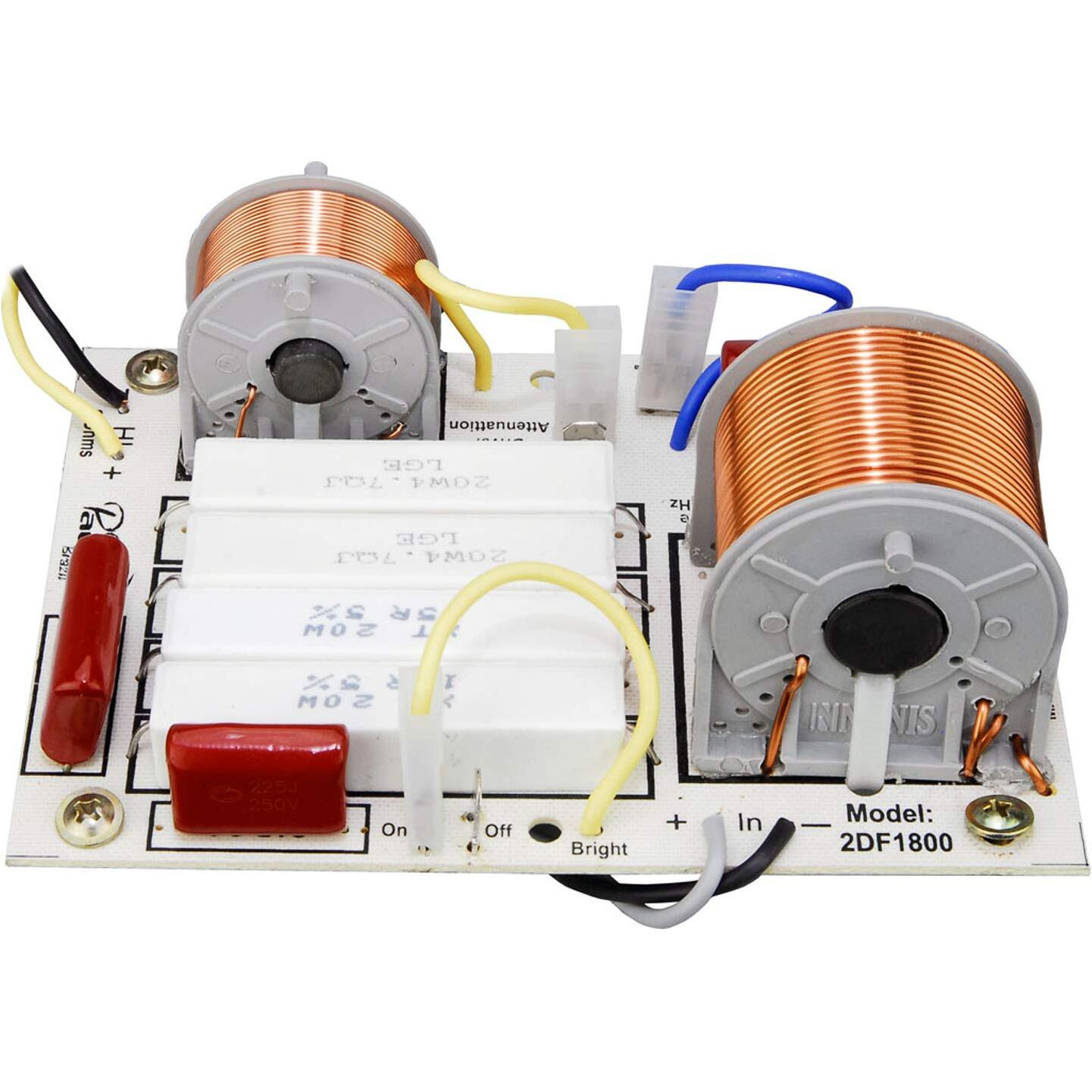

Prv Audio 2Df1800 Two-Way Crossover Board 1800Hz With Driver Attenuation 8 Ohms

• Brand: Prv Audio
• Category: Electronics (Electronics & Electrical Accessories)
• Code: ELELAB00K2ET9BA
• Weight: 1.51 pounds
• Shipping Weight: 1.51
• Dimensions:  10.00  x 7.00  x 6.00  inches
• Item ID: 4052267
• List Price: $112.70

• Seller: Ami Venture US
• Availability: 1
• Ships from: United States
• Ships in: 7 business days
• Transit time: Up to 4 business days
• Delivery by: Nov 08 to Nov 10

• Woofer Impedance Selection: This Setting Allows The Same Crossover To Be Used With 8 Or 4 Ohms Speakers And Combinations Of Them (Series Or Parallel Connection) Providing You With One Solution For Multiple Cabinet Variations | Woofer Roll-Off Crossover Adjustment: Some Woofers Respond Excessively At The Cut Off Frequency Than Others And Need 12 Db/Octave Filters Where Other Woofers Have A Natural Roll-Off At Or Near The Crossover Point And Work Well With 6 Db/Octave Filters. We Give You The Ability To Select This On Two Of Our Crossovers: The 2Df1800 Two-Way Crossover And The 3Df400/1800 Three-Way Crossover | Speaker Attenuation: Match The Output Level Of The Different Speakers In Your Cabinet With The Setting; It Helps In Creating A Seamless Transition From High To Mid To Low-Especially Useful For When Driver Sensitivities Do Not Match | Brightness Adjustment: Many Large Format Compression Drivers Naturally Roll-Off Above 10 Khz. Our Brightness Adjustment Offsets This Phenomenon Applying Attenuation Below 6 Khz And Increasing The Energy At High Frequencies For More Brightness And Definition

Two-Way Crossover Type: Two-Way Impedance (Ohms): 8 Crossover Point (Hz): 1 800 Woofer Impedance (Ohms): 4/8 Rms Power (Watts): 650 Program Power (Watts): 1 300 Selectable Crossover Point (Hz): - Hf Attenuation (Db): 6/7.5/9 Brightness: Yes Woofer Octave Sel (Db Octave): 6/12 Midrange Attenuation (Db): - Octave (Db): 12
