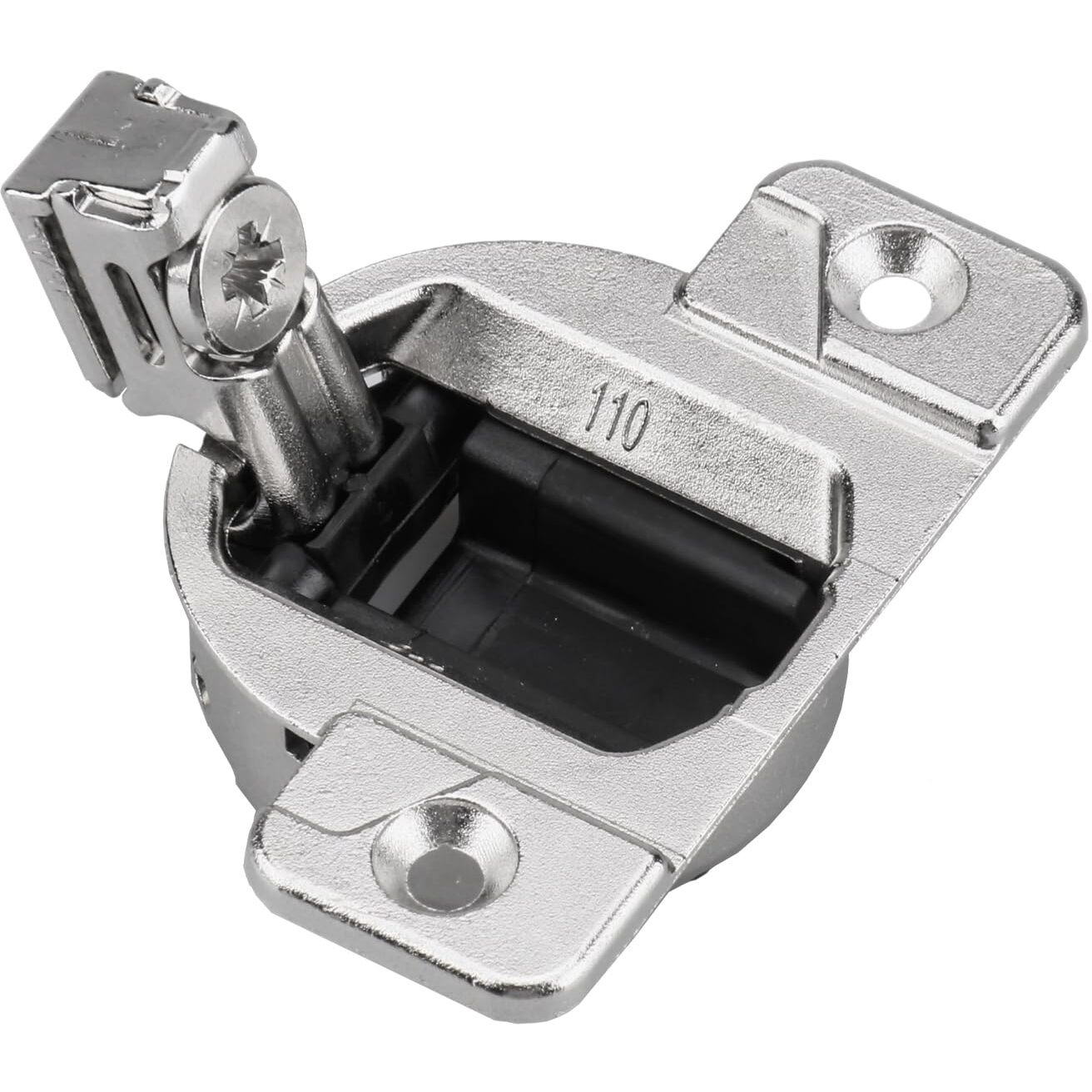

Replacement For Blum 110 Cabinet Hinges Hinge Back Model 30.310-11.02 Blum 110 Degrees Screw On Compact 33 Hinge For Cabinet Doors Without Mounting Plate And Screws (8 Pack)

• Brand: Quini
• Category: Hardware (Hardware)
• Code: HARDWB0DW8X336V
• Weight: 0.73 pounds
• Shipping Weight: 0.73
• Dimensions:  2.00  x 18.00  x 17.00  inches
• Item ID: 4060764
• List Price: $41.31

• Seller: Ami Venture US
• Availability: 1
• Ships from: United States
• Ships in: 9 business days
• Transit time: Up to 4 business days
• Delivery by: Nov 10 to Nov 12

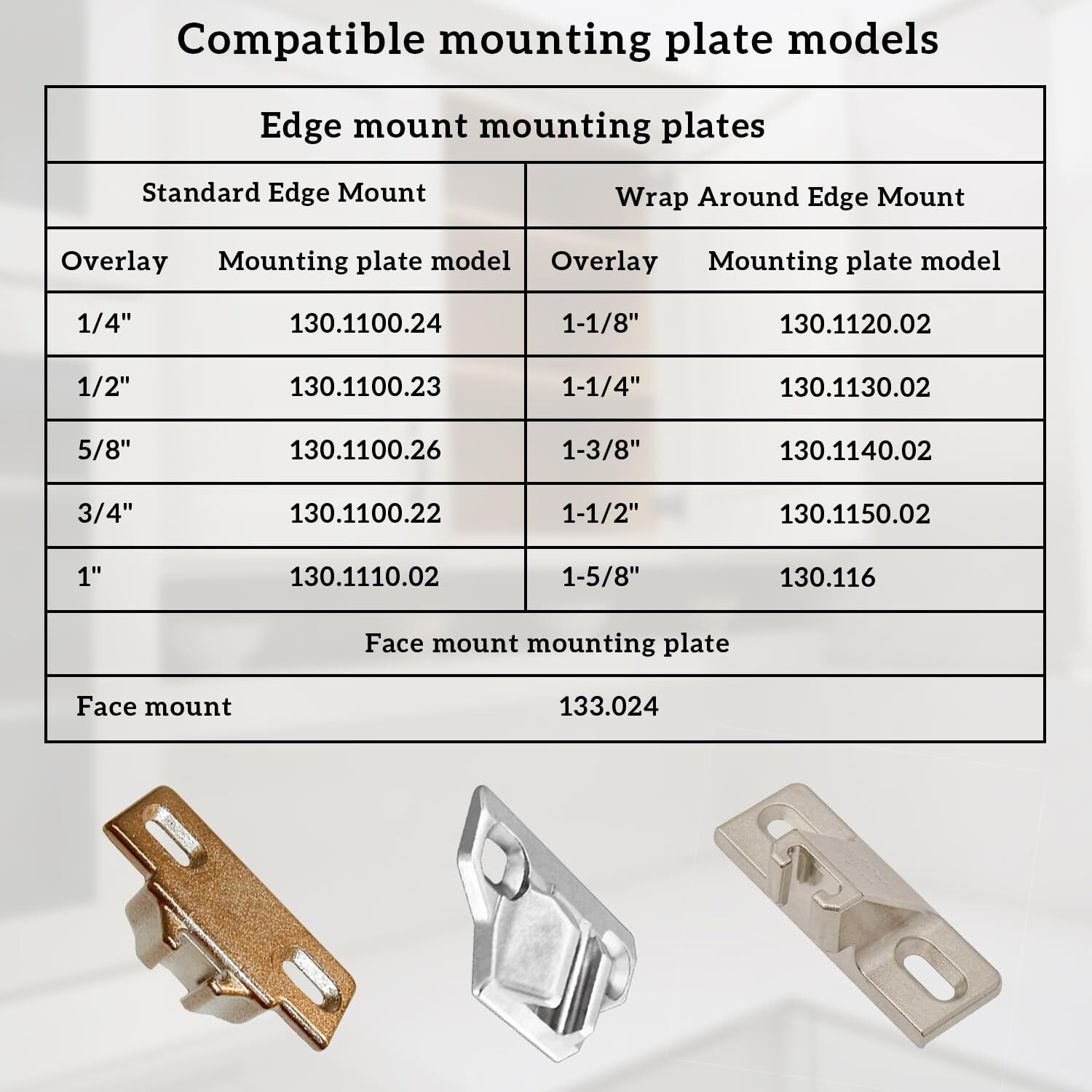

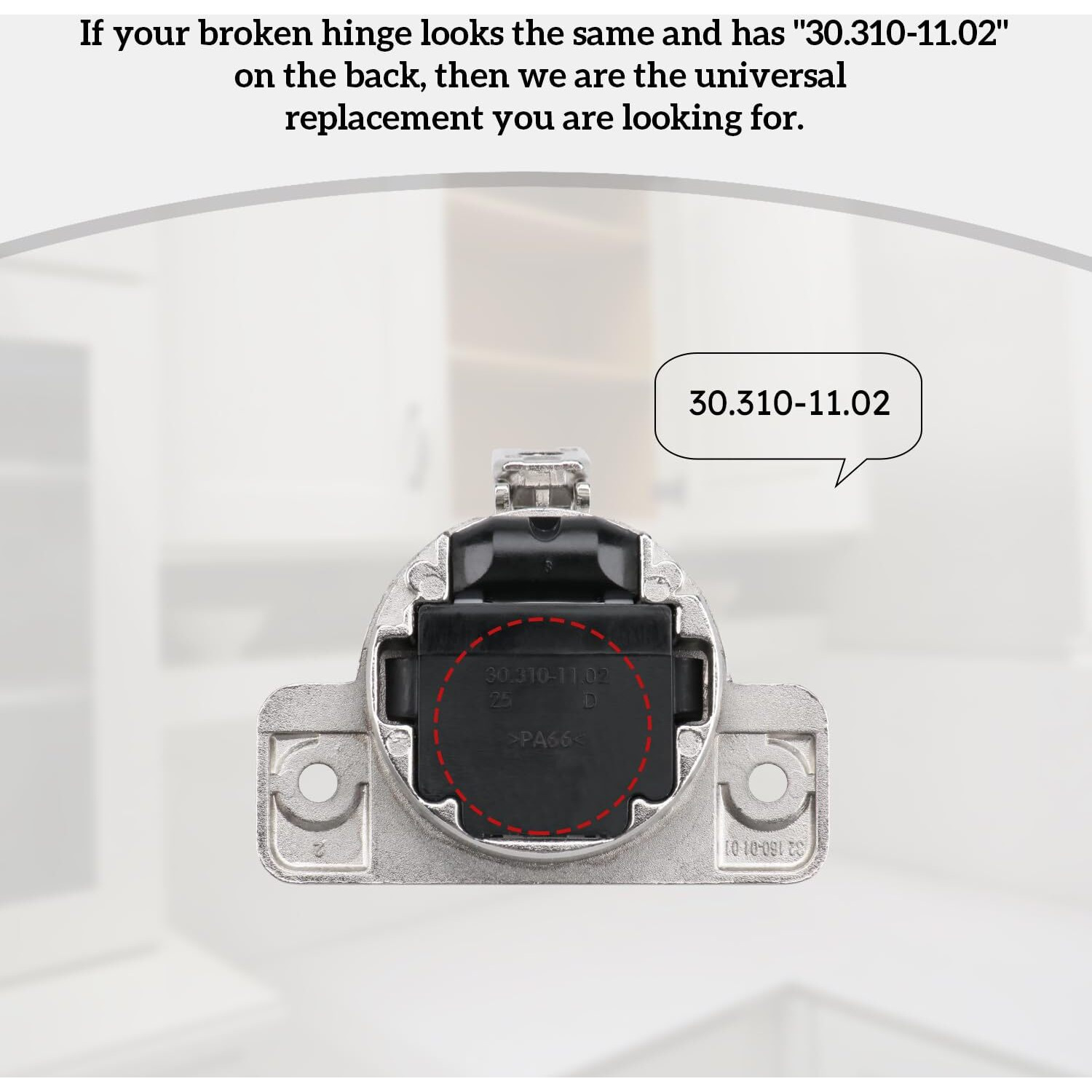

• Applicable Product Models:If The Number On The Black Plastic Back Of Your Blum Hinge Is 30.310-11.02 Then This Is The Cabinet Door Hinge You Should Replace.(The Following Are Some Of The Other Possible Numbers That Blum Hinges Has Stamped On These Hinges Over The Years: 120 32.160 30.310 Pa66 32.260.) | Compatible Mounting Plate Models:Replaces Original Blum Cabinet Hinges. Compatible With The Following Blum Mounting Plate Models: 130.1100.24 130.1100.23 130.1100.23 130.1100.22 130.1110.02 130.1120. 02 130.1130.02 130.1140.02 130.1150.02 130.1160 133.0240 Ect. | Sturdy And Beautiful: The Cabinet Door Hinges Are Nickel-Plated Rich In Metallic Luster And Are Corrosion-Resistant And Wear-Resistant Maintaining A Beautiful Appearance For A Long Time. | Economical And Environmentally Friendly: The Hinges For Cabinet Doors Do Not Contain Screws And Mounting Plates. You Can Continue To Use The Undamaged Mounting Plates And Screws On The Cabinets To Save Environmental Resources. | Easy To Install:You Only Need A Screwdriver And It Can Be Installed In Minutes. You Will Have A Cabinet That Makes You Comfortable Again.

Mounting Plates: This Product Page Includes The Hinge Only. These Hinges Require Mounting Plates. Installation: Mounts Into A 35Mm Cup In The Back Of The Cabinet Door. Cup Depth Is 1/2"". The Bore Distance (The Distance From The Edge Of The 35Mm Cup To The Edge Of The Door) Is 1/8"" For All Applications Of This Hinge. Replacements: It Is Okay To Reuse Your Existing Mounting Plates. They Will Work With The New Hinge. The Following Are Some Possible Numbers That Blum Has Stamped On These Hinges Over The Years: 120 32.160 30.310 Pa66 32.260 Prior Versions Of This Hinge Were Made To Open To 120 Degrees. The 120 Degree Hinge Can Be Replaced With This New 110 Degree Version . It Is Not Advisable To Mix 120 Degree Hinges With The New 110 Degree Hinge. The ""Old Style"" Blum Compact 33: You Can Use This New Model Hinge To Replace Your ""Old"" Style Blum Compact 33 Hinge. The Old Style And The New Style Are Functionally The Same Even Though They Look Like Different Hinges. The Only Difference Is That The ""Old Style"" Blum Compact 33'S Screw Holes Are Located Closer To The Pivot Point Of The Hinge. When Replacing The Old Style With The New Style You Will Have To Re-Drill The Small Wood Screw Holes. The New Screw Hole Location Will Not Interfere With The Old Screw Hole Location.
