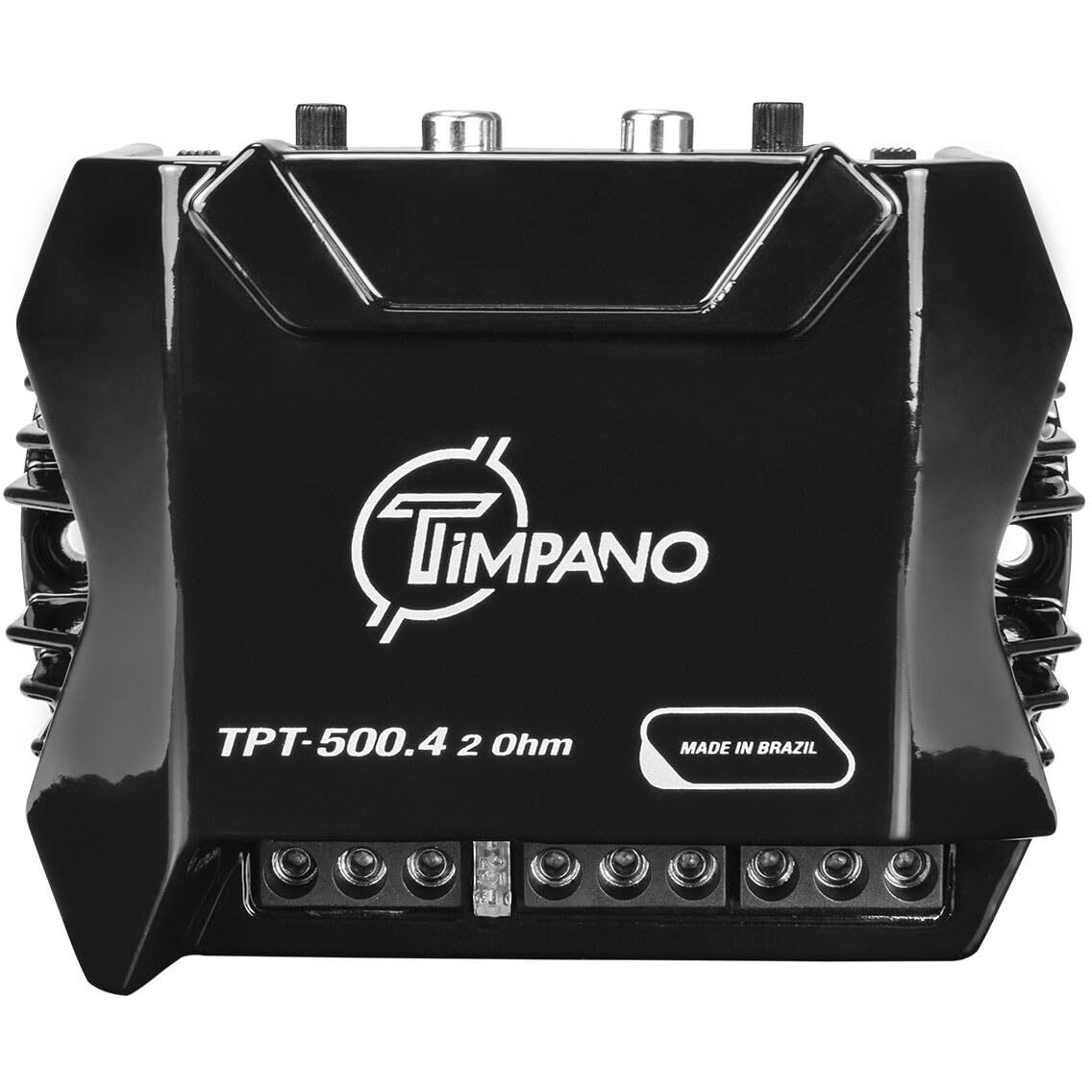

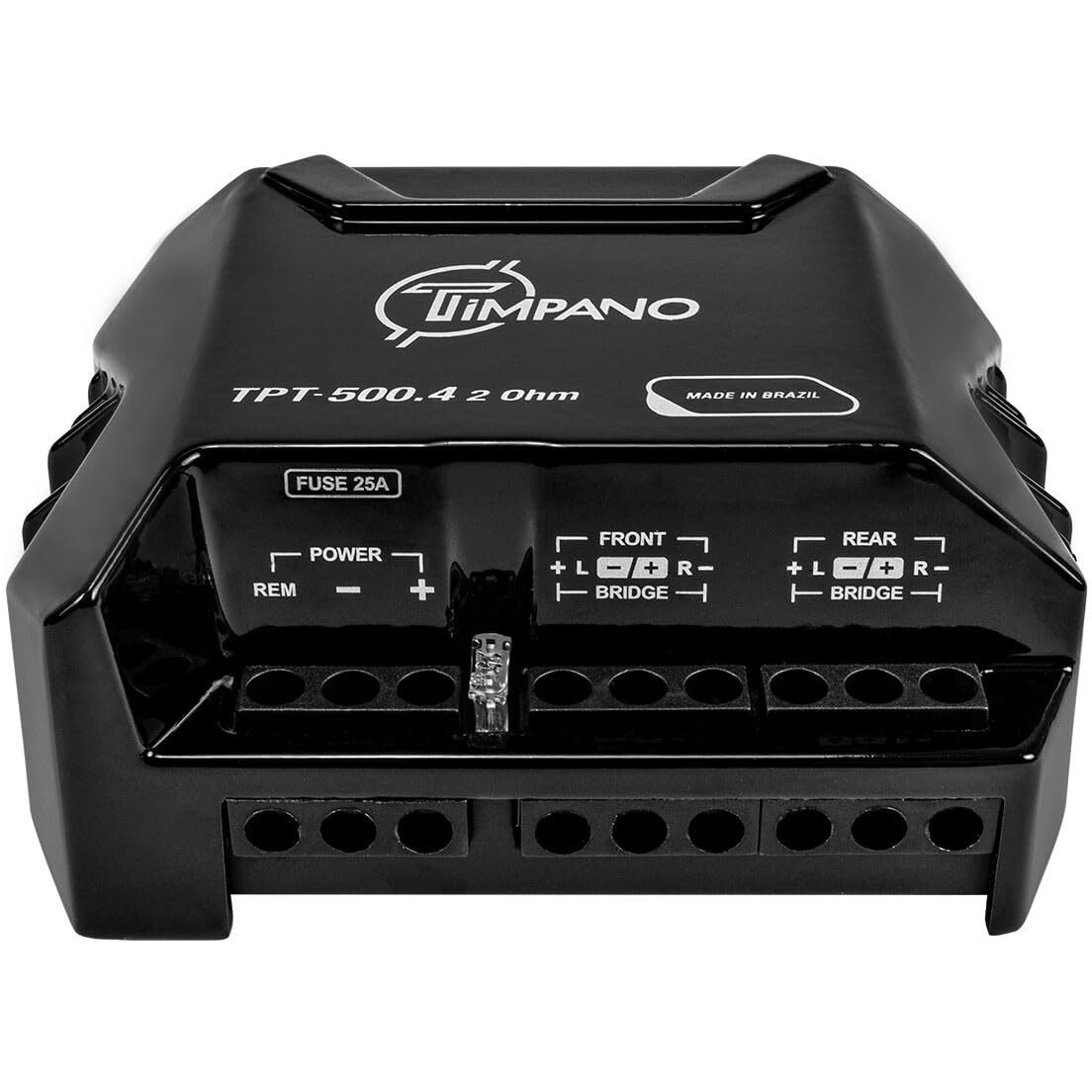

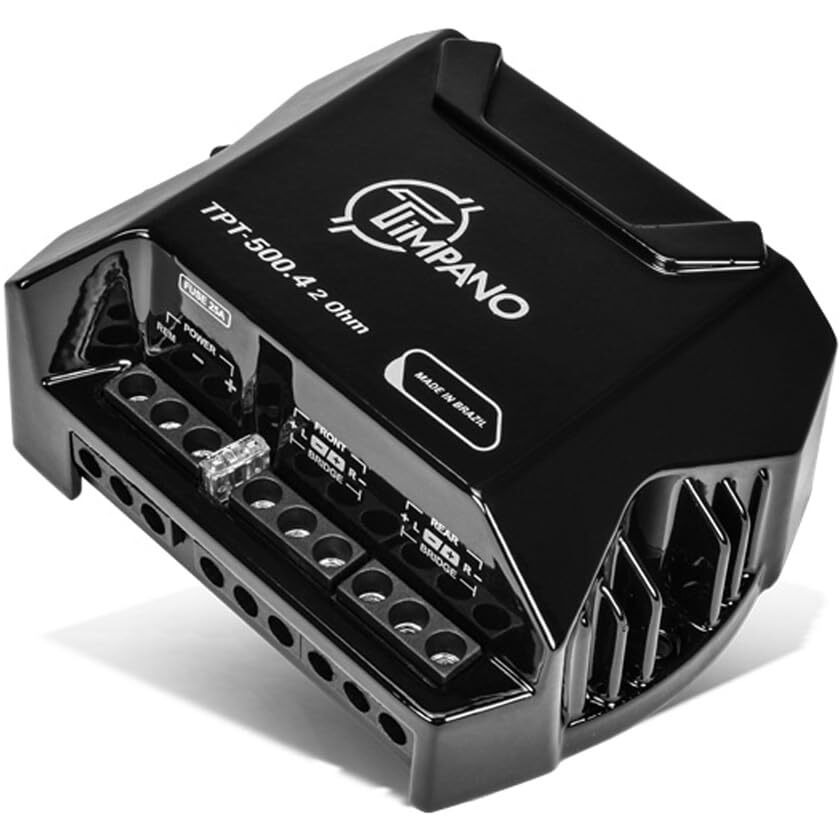

Timpano 500 Watt 2 Ohm 4 Channel Class D Compact Car Audio Amplifier Tpt-500.4-2 This Listing Includes: (1) 500 Watt 2 Ohm 4 Channel Class D Compact Car Audio Amplifier Timpano Amplifiers Raises Power Amplification To A New Standard Of Quality And Usability. The New Line Delivers The Most Innovative And Powerful Brazilian Technology In Compact Full Range Amplifiers On The Market. Loaded With Features It Provides An Unsurpassed Efficiency Rate Of 80-90% In A Compact Class D Full Range Amplifier. Features: Heavy Duty 10 Gauge Power And Speaker Wire Inputs. Built-In Crossover Filters For Easy Tuning! Choose Between A Fixed Hpf At 90Hz Or Lpf At 90Hz + 45Hz Bass Boost Or Just Turn It Flat And Use Your External Crossover Or Dsp Settings. It Also Includes Variable Gain Control. Level Controls Are Not For Adjusting Volume. They Adjust The Amount Of Signal That Is Coming Into The Amplifier From Your Signal Source. Specifications: Number Of Channels: 4 Max Dynamic Output: 4 X 125 Watts Rms 2 Ohms Rms Power At 2 Ohms 12.6 Volts: 4X 100 Watts Rms Rms Power At 4 Ohms 12.6 Volts: 4X 50 Watts Rms Bridged Rms Power At 4 Ohms 12.6 Volts: 2X 200 Watts Rms Supply Voltage: 10 ~ 15V Frequency Response: 10Hz ~ 24Khz Crossover Low Pass: Fixed At 90Hz + 45Hz Bass Boost Crossover High Pass: Fixed At 90Hz Signal To Noise:> 90 Db Harmonic Distortion: < 0.9% Thd Input Impedance: 20K Ohms Impedance Output: 2 Ohms Consumption With Signal Musical: 1A ~ 17A Dimensions: Length: 5.1 Inch Width: 4 Inch Height: 2 Inch
