  • Vintage American Ceramic Magnet Tone Approved...
Ami Venture US

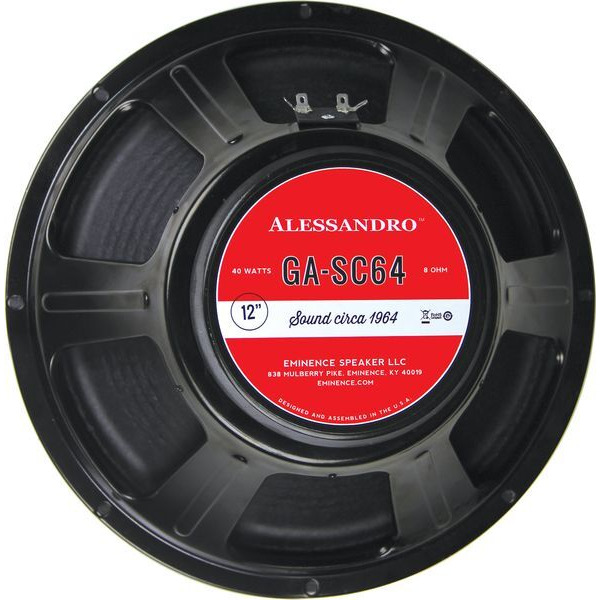

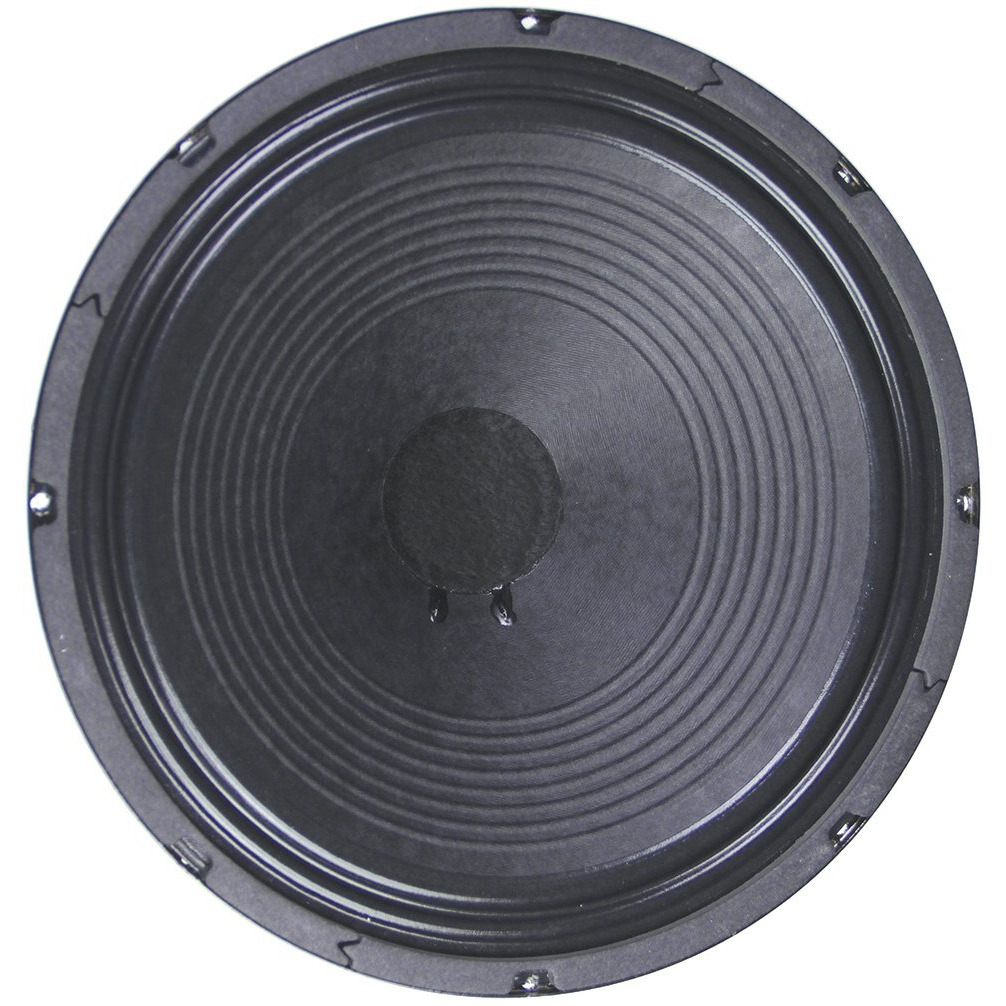

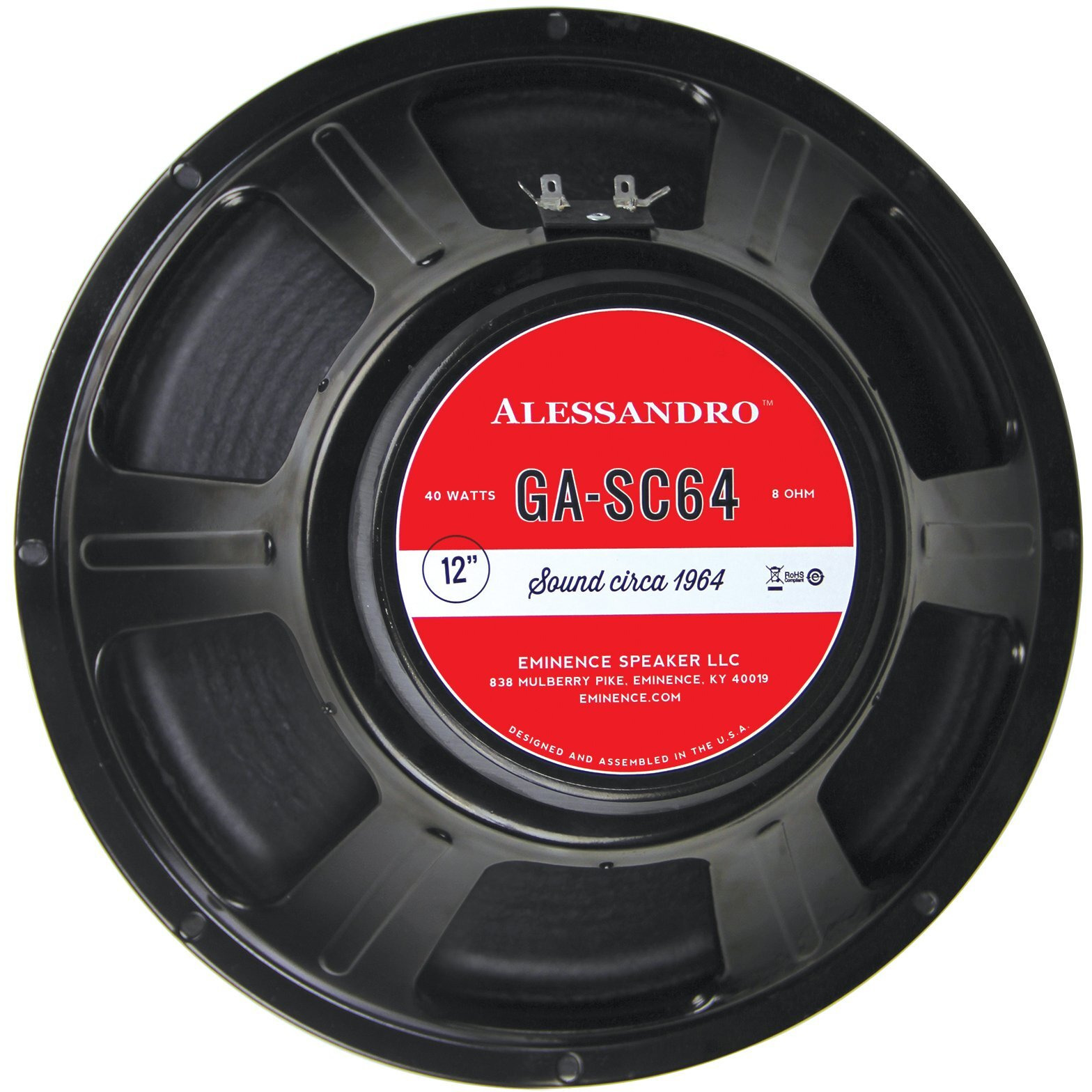

Vintage American Ceramic Magnet Tone Approved By Legendary Amp Builder, George Alessandro. Well-Balanced From Top To Bottom W/Tight, Full Lows, Warm Mids, & Warm, But Open Highs.

$190.85     $229.02   17% Off     (Free Shipping)
1 available
  • Brand: Eminence
  • Category: Music
  • Code: MUSINB00HWL9MZO
  • Weight: 10 pounds
  • Shipping Weight: 10
  • Dimensions:  13.00  x 13.00  x 6.50  inches
  • Color:  Black
  • Color:  Black
  • Item ID: 3716182
  • List Price: $229.02
  • Seller: Ami Venture US
  • Availability: 1
  • Ships from: United States
  • Ships in: 7 business days
  • Transit time: Up to 4 business days
  • Delivery by: Sep 06 to Sep 08
  • Nominal Basket Diameter: 12-In , 305 Mm.Nominal Impedance: 8 Ohms.Power Rating:Watts: 40 W.Music Program: N/A.Resonance: 88 Hz.Usable Frequency Range: 80 Hz - 5.3 Khz.Sensitivity: 100.5 Db.Magnet Weight: 38 Oz..Gap Height: 0.313-In , 8 Mm.Voice Coil Diameter: 1.75-In , 44 Mm.Thiele & Small Parameters.Resonant Frequency (Fs): 88 Hz.Dc Resistance (Re): 7.63 Ohms.Coil Inductance (Le): 0.67M H.Mechanical Q (Qms): 16.82.Electromagnetic Q (Qes): 0.6.Total Q (Qts): 0.58.Compliance Equivalent Volume (Vas): 44.96 Liters / 1.59 Cu.Ft..Peak Diaphragm Displacement Volume (Vd): 83.8 Cc.Mechanical Compliance Of Suspension (Cms): 0.12 Mm/N.Bl Product (Bl): 13.8 T-M.Diaphragm Mass Inc. Airload (Mms): 27 Grams.Efficiency Bandwidth Product (Ebp): 146.Maximum Linear Excursion (Xmax): 1.23 Mm.Surface Area Of Cone (Sd): 519.5 Cm2.Maximum Mechanical Limit (Xlim): N/A.-----------------------------------Recommended Enclosure Volume;Sealed: Acceptable.Vented: Acceptable.Driver Volume Displaced: 0.071 Cu.Ft. / 2 Liters.Overall Diameter: 12.17-In , 309.1 Mm.Baffle Hole Diameter: 11.13-In , 282.7 Mm.Front Sealing Gasket: Yes.Rear Sealing Gasket: N/A.Mounting Holes Diameter: 0.24-In , 6.1Mm.Mounting Holes B.C.D.: 11.75-In , 298.5Mm.Depth: 5.13-In , 130.2 Mm.Net Weight: 7.5 Lbs, 3.4 Kg.Shipping Weight: 8.4 Lbs, 3.81 Kgs.Materials Of Construction.Coil Construction: Copper Voice Coil.Coil Former: Paper Former.Magnet Composition: Ferrite Magnet.Core Details: Non-Vented Core.-----------------------------------.Basket Materials: Pressed Steel Basket.Cone Composition: Paper Cone.Cone Edge Composition: Paper Cone Edge.Dust Cap Composition: Solid Composition Felt Dust Cap.

This Table Charts The Specifications For The Ga-Sc64 Speaker
