Water To Air Heat Exchanger 12X12 With 1"" Copper Ports For Outdoor Wood Furnaces Residential Heating And Cooling And Forced Air Heating

• Brand: Ab
• Category: Hardware (Hardware)
• Code: HARDWB07BB2VQ1M
• Weight: 8.65 pounds
• Shipping Weight: 8.65
• Dimensions:  20.50  x 13.75  x 5.50  inches
• Item ID: 4049493
• List Price: $205.00

• Seller: Ami Venture US
• Availability: 1
• Ships from: United States
• Ships in: 9 business days
• Transit time: Up to 4 business days
• Delivery by: Oct 31 to Nov 02

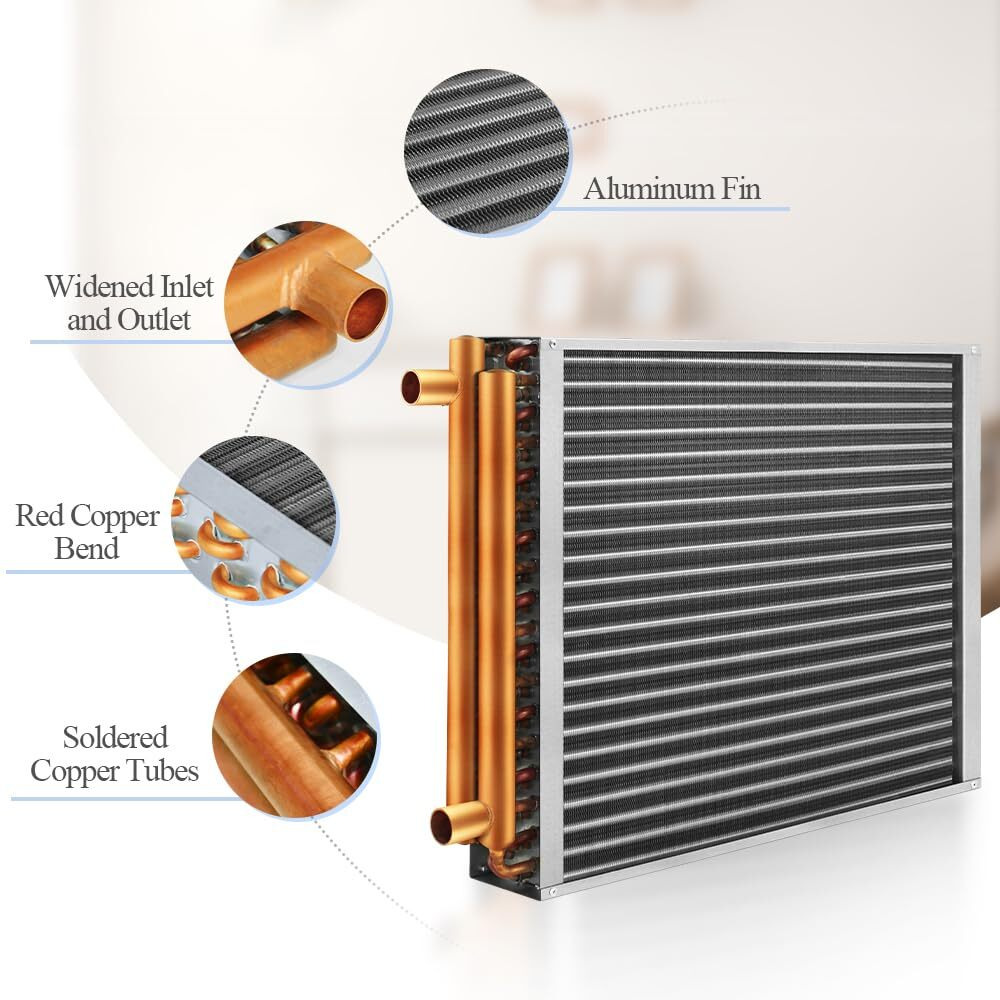

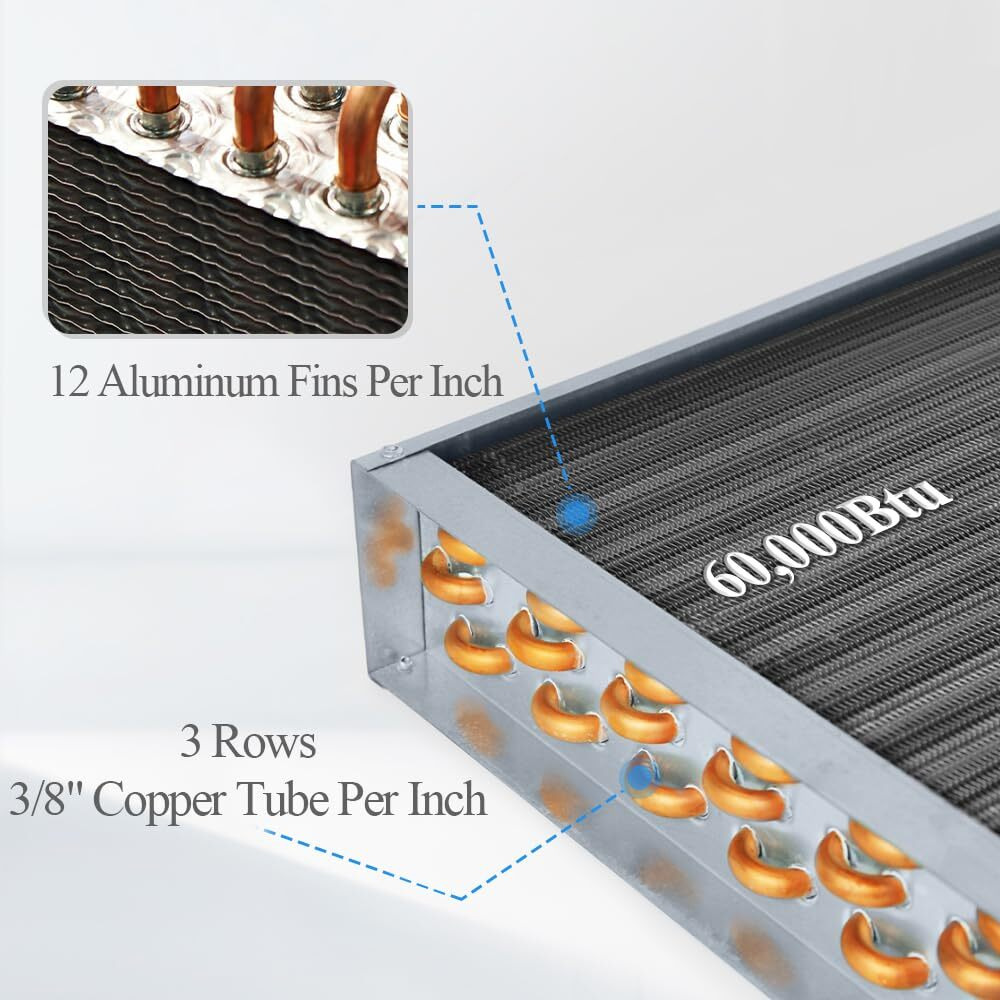

• ?Excepetional Performance?The Heat Exchanger Has A Capacity Of 60 000 Btu. Depending On The Application The Heat Exchanger Can Produce Up To 360Kbtu Of Heat Per Hour With 12 Aluminum Fins And 3 Rows Of 3/8"" Seamless Copper Tubes Per Inch. The Combination Of Wavy Fins And Seamless Copper Tubes Which Enhanced Contact Areas Both Inside And Outside The Tubes Results In A 10-20 Percent Increase In Heat Transfer Performance Maximizing Heating Or Cooling Efficiency. | ?Premium Material?Our Heat Exchangers Are Supported By Steel Shells And The Edges And Contact Points Are Base Brazed Which Is Very Solid And Not Easily Affected By High Pressure And Temperature. Copper And Aluminum Are Highly Conductive Materials Which Make The Heat Exchanger Have Good Performance And Economy In Heat Transfer And Cooling.The Fins Are Coated With Epoxy Resin Which Improves The Hardness And Wear Performance Of The Fins Prolonging The Service Life Of The Fins. | ?Energy-Efficient And Affordable?Our Water-Air Heat Exchangers Allow For Water-Air Heat Exchange Movement Through A Variety Of Sources - Boilers Solar Panels Etc.This Means You Can Utilize A Variety Of Renewable Energy Sources And Save Energy. | ?Convenient Installation?This New Type Of Heat Exchanger Is Easy To Install With A Variety Of Options Available. It Can Be Directly Connected To The Pipeline And Fixed With Clamps; It Also Can Be Directly Welded To The Pipeline And Adapters Or Be Connected With Rivets To Meet Meet A Multitude Of Installation Needs. | ?Multiple Applications?Water-To-Air Heat Exchanger Offers A High Level Of Thermal Efficiency And Durability In A Compact & Lightweight Unit Which Maximizes Space Saving Suitable For Outdoor Wood Furnaces Residential And Commercial Heating And Cooling Hybrid Systems Air Conditioning Inverter Cooling And So On.

Water To Air Heat Exchanger This Product Can Be Used With A Boiler Or Any Other Indoor/Outdoor Source Of Hot Water To Transfer Heat Into Your Existing Forced Air System. Our Unit Is Ideal For Both Residential And Commercial Uses. Our Air To Water Heat Exchangers Come With A One Year Warranty Against Manufacturer Defects. A Copy Of Written Warrant Is Available Upon Request. Product Information And Specifications 12X12 Air To Water Heat Exchanger Port Size: 1"" Capacity: 60 000 Btu/Hr Rating: 175Psi @ 350F Min. Working Temperature: 32F Max. Working Temperature: 350F Design Pressure: 175Psi Test Pressure: 263Psi Fins: 12 Per Inch Aluminum Coils: 3 Rows Of 3/8"" Seamless Copper Materials: Galvanized Steel (Core Housing) Copper (Coils) Aluminum (Fins) Dimension: 12"" X 12"" X 3.5"" Applications Residential And Commercial Heating And Cooling Apartment And Condominiums Heating And Cooling Forced Air Heating Hybrid Systems Air Conditioning Dehumidification Inverter Cooling
